HARMONY

HARMONY escalators and passenger conveyor belts combine the attributes of comfort, safety, functionality and aesthetics. We offer solutions for INDOOR, as well as OUTDOOR use with the required IP protection classes. The modular modern control system ensures trouble-free operation and helps save energy. The low-noise frequency-controlled drive has an efficiency of over 88% and enables smooth acceleration and deceleration curves. By using LEDs instead of conventional lighting, energy consumption is reduced and the service life of the lighting is increased by up to ten times.

Hospitals, shopping centres, metro stations, office buildings or airports - we offer the right escalators and passenger conveyors for your usage requirements for normal or high passenger volume with up to 24h usage per day. With a high level of design variety, the escalator fits into any environment. Various stainless steel surfaces with modifiable lighting colours (RGB) can be selected. Clear visual guidance of passengers with stylish directional displays, lighting of steps and combs, and a range of safety devices and sensor systems ensure safe operation.

The HARMONY escalators are certified according to the safety standard EN 115-1:2008 + A1:2010



MAIN CHARATERISTICS

HARMONY escalators and passenger conveyor belts

• Travel height:	up to 27m (escalator)
	up to 12m (passenger conveyor belt)
• Inclination:	30° / 35° (escalator)
	0° / 10° / 11° / 12° (passenger conveyor belt)
• Step width:	600mm, 800mm, 1000mm (escalator)
	800mm, 1000mm, 1200mm (passenger conveyor belt)
• Speed:	0.5m/s, 0.65m/s (0.75m/s)
• Operating time:	12h to 24h per day
• Application:	Indoor / Outdoor

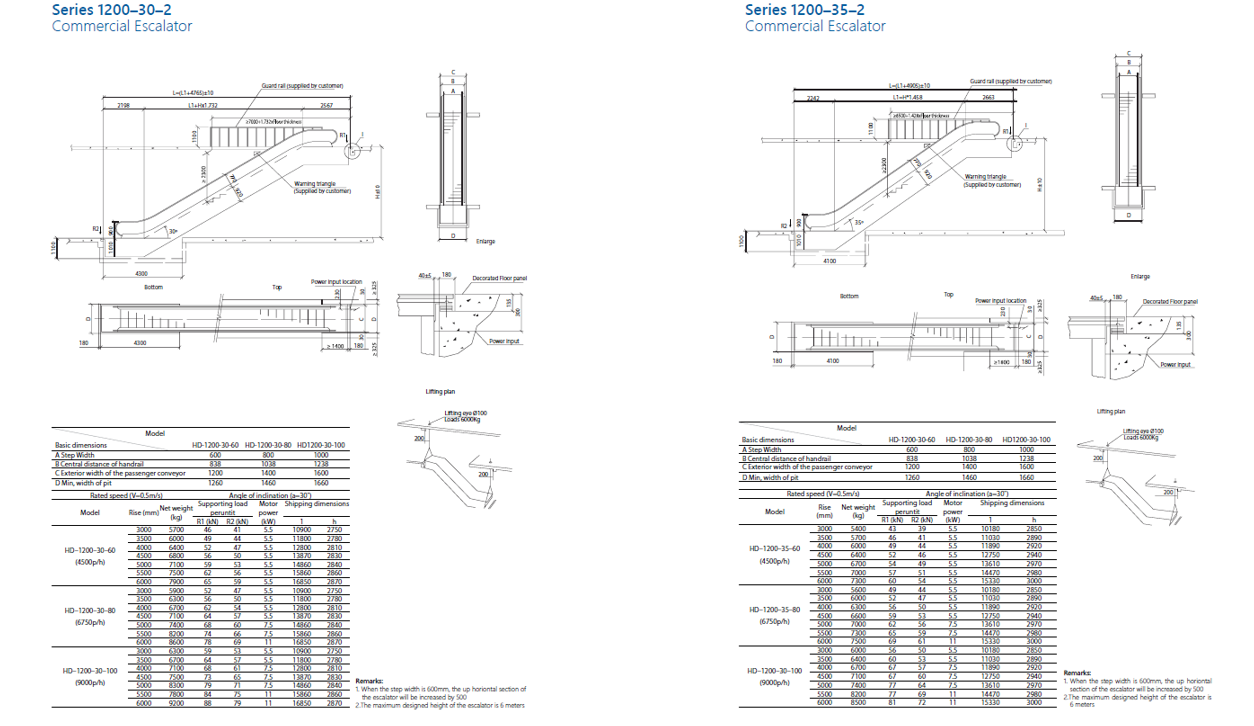

SYSTEM LAYOUT
